Creating a 2D plan in Virtual Worlds Professional allows you to generate a dimensioned layout of your design that can be used for installation or client presentations. Follow these steps to generate a detailed and professional 2D plan from your existing 3D design.
Access the 2D Diagrams Tool
To begin, ensure your design is ready in Virtual Worlds Professional. Locate and click the 2D Diagrams button, positioned next to the 4D icon on the main toolbar.
Select a Template

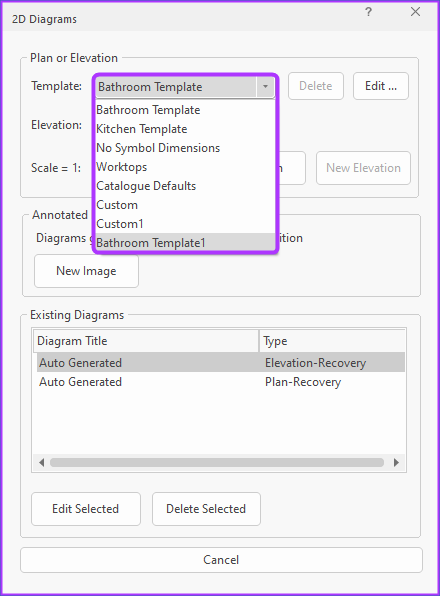

Choose a template for your 2D diagram. Templates help control the default visibility of items and dimensions. You may use a default template or create a custom template to fit your project requirements.
Generate the Plan

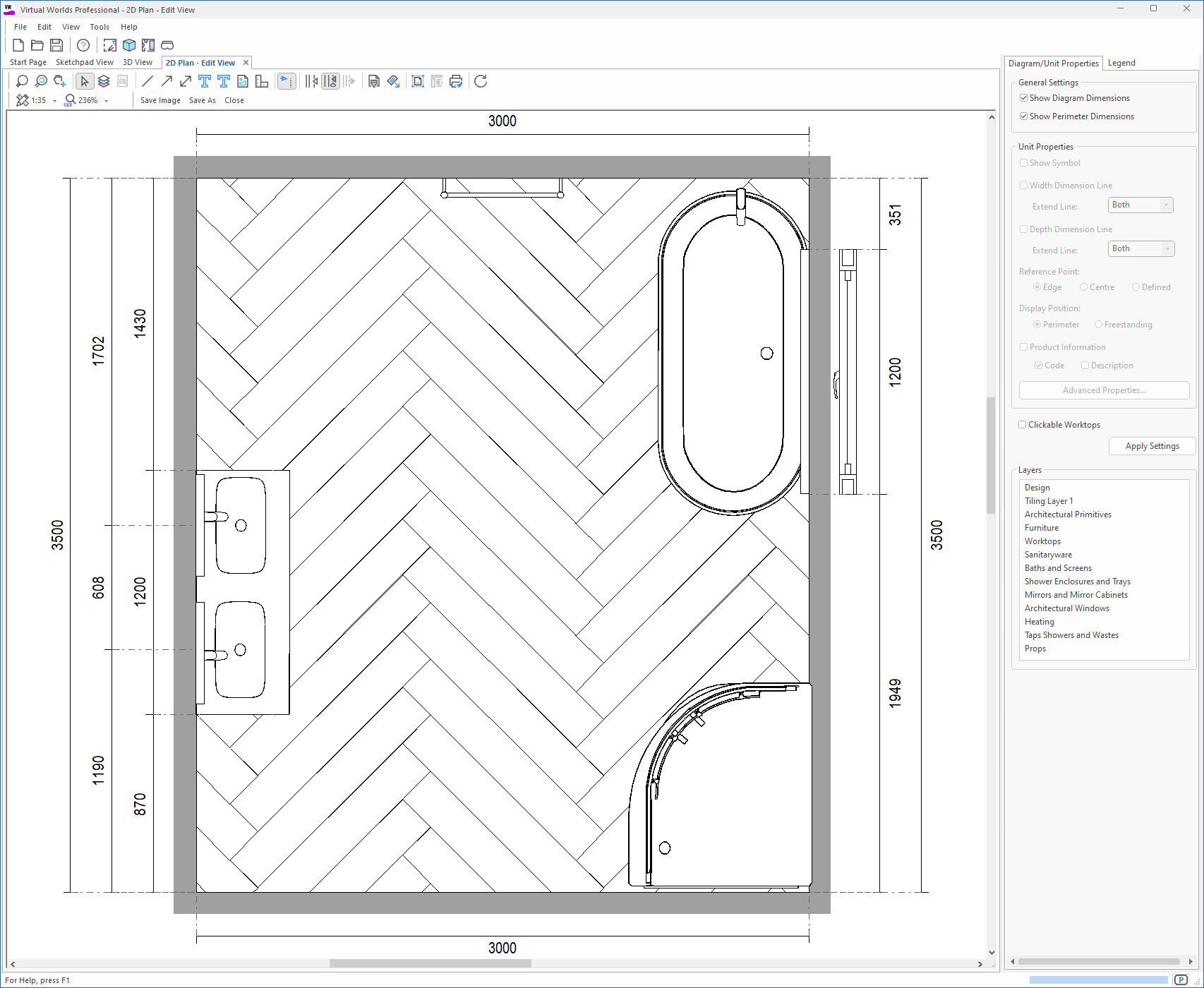

After selecting the template, click New Plan to generate the 2D plan. The generated plan will open for you to view, edit, and annotate as needed.
Edit and Save the Plan
Once the plan has been generated, you can add annotations, adjust dimensions, or make other modifications. When finished, save the diagram by clicking Save As to keep a copy or export it for future use.
