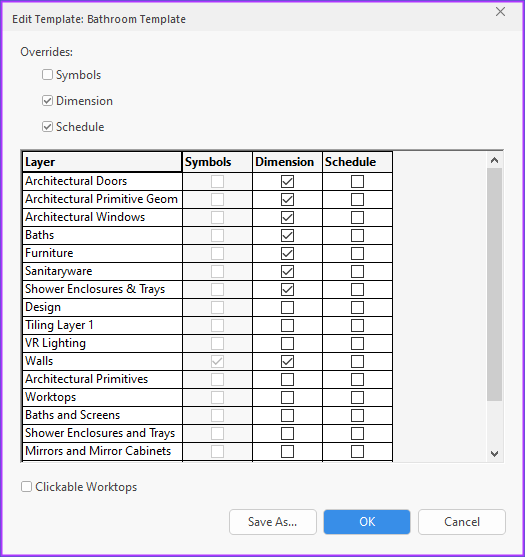

When editing a template in Virtual Worlds Professional, you have fine control over each product type’s Symbol, Dimension, and Schedule settings. These options determine what appears on the diagram when it’s generated, allowing for more tailored visibility and data control.
- Symbol: Enable or disable the visibility of an item’s 2D symbol in the generated diagram.
- Dimension: Control whether the item’s dimensions are displayed in the diagram.
- Schedule: Decide if an item is assigned a schedule number, which will appear on the Legend tab.
