In Virtual Worlds Professional you can generate a panoramic .jpg of your design. This image can then be used in the 360 viewer in Design Cloud by anyone who has the file.
There are two panoramic options in the image preset settings:
Cylindrical |
Spherical |
Generating a panoramic image is the same process as creating a standard image, but you change the projection option in the image preset.
Take the following steps to create a panoramic image:
1. Establish viewpoint and open Create Image
- Ensure that the viewpoint is central in the design so the panorama captures a 360° image.
- In an open design, click Tools in the menu bar.
- Click Create Image file... .
- In the Create Image window, the Projection drop-down is in the Image section.
- Click the Projection drop-down and select a Panoramic option.
2. Start or Export render
- In the Create Image... window, click the Preset drop-down and select the new preset.
- Confirm all other settings such as Resolution and Brightness.
- Click:
-
-
-
Start to immediately begin the render. More details on image creation can be found here:
or
-
Export... to send the rendering image a to the SAR input folder.
Note: This will be processed and rendered using the Stand Alone Renderer (SAR). For guidance on setting up SAR, see article Configuring Stand Alone Renderer (SAR): Settings.
-
Start to immediately begin the render. More details on image creation can be found here:
-
-
Once the image has been saved, you can now upload it to Virtual Worlds' Design Cloud to view:

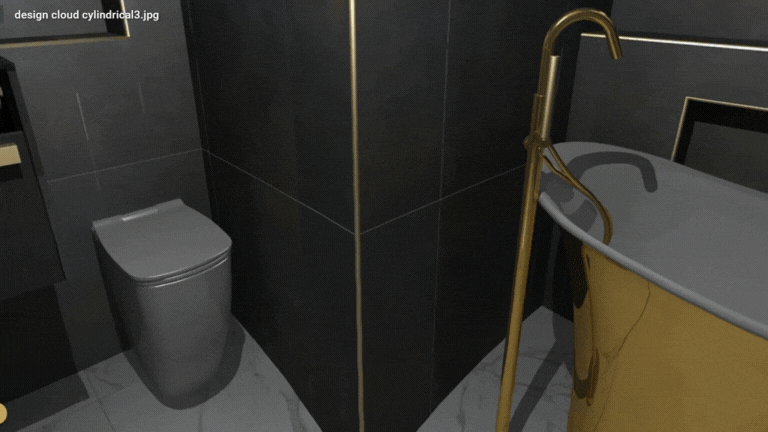

Cylindrical |

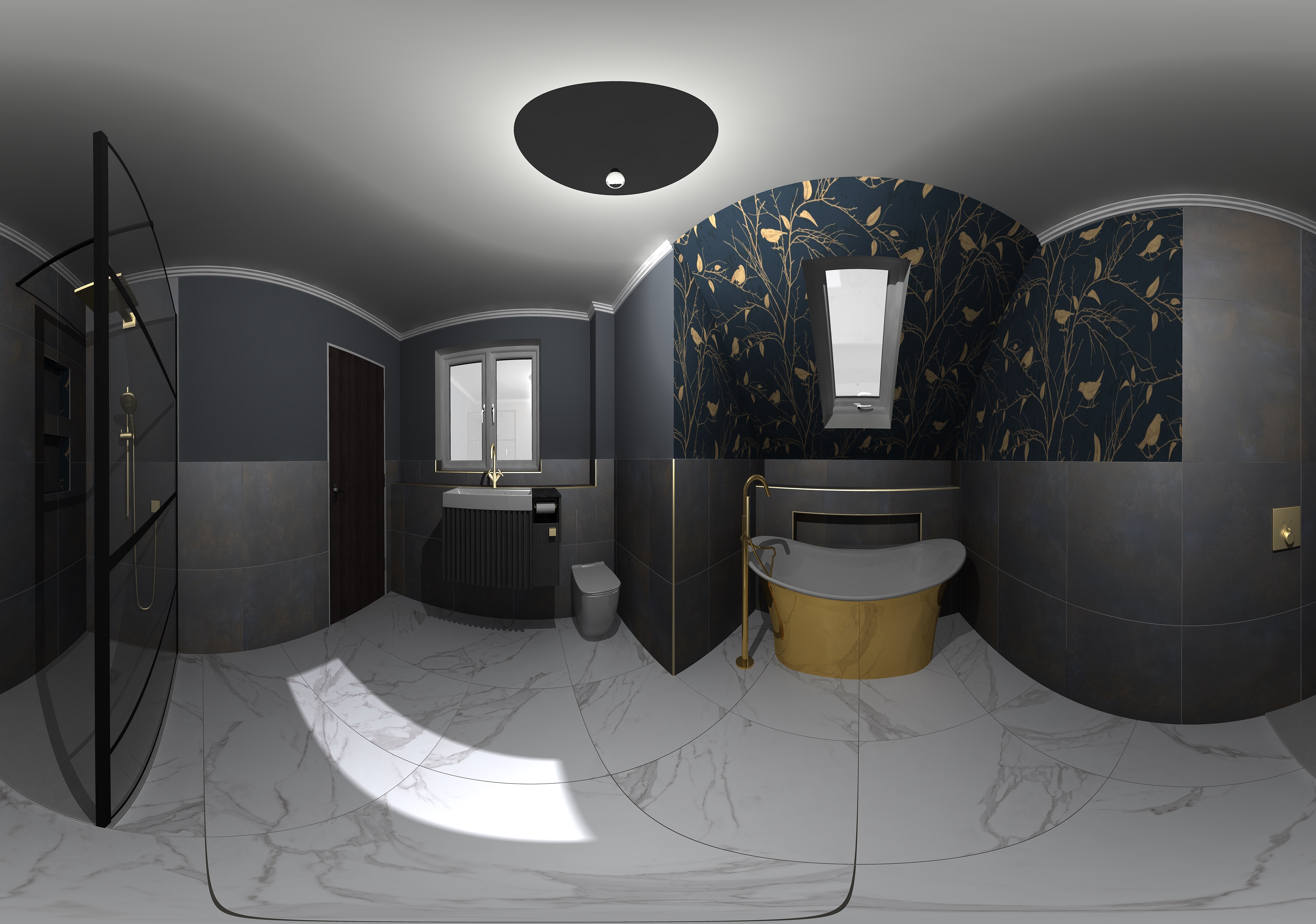

Spherical |
- For more information about Design Cloud, see article What is Virtual Worlds' Design Cloud?
- For guidance on uploading panoramas to Design Cloud, see How can I view panoramas that are created in Virtual Worlds Professional?
