When rendering images in Virtual Worlds Professional, there are different projection types depending on the image output you need. The differences may appear subtle, but can assist in presenting a better, professional image for your clients.
The article below details how to navigate to Projection and the projection types available. See articles Editing photo quality presets and Creating Images for further detailed guidance on rendering images.
Navigating to Projection type
The projection options are located in the Create Image window.
- Click Tools in the menu bar and select Create Image File... .

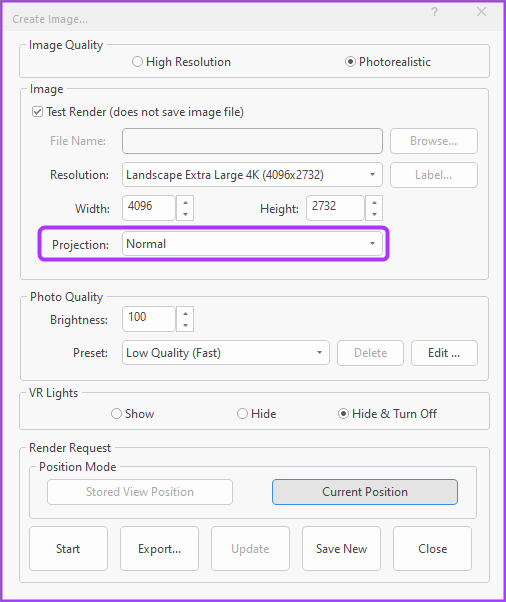

- In the Create Image window, go to the Image section and click the Projection drop-down.

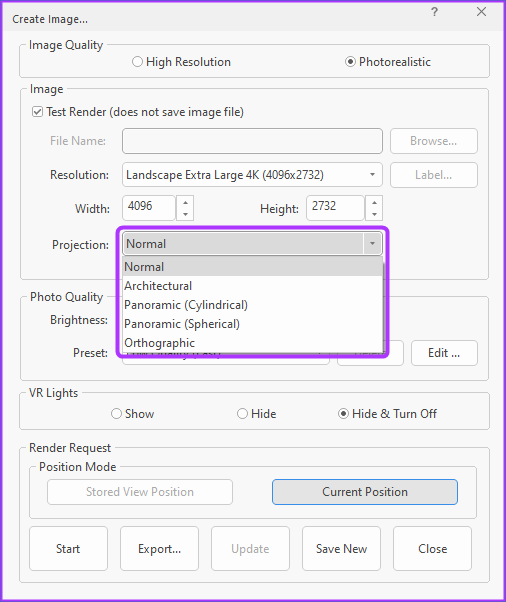

- In the Projection drop-down, you have the choice of five projection types.
Projection types
Click the Projection type drop-down to select the following options:
Normal |

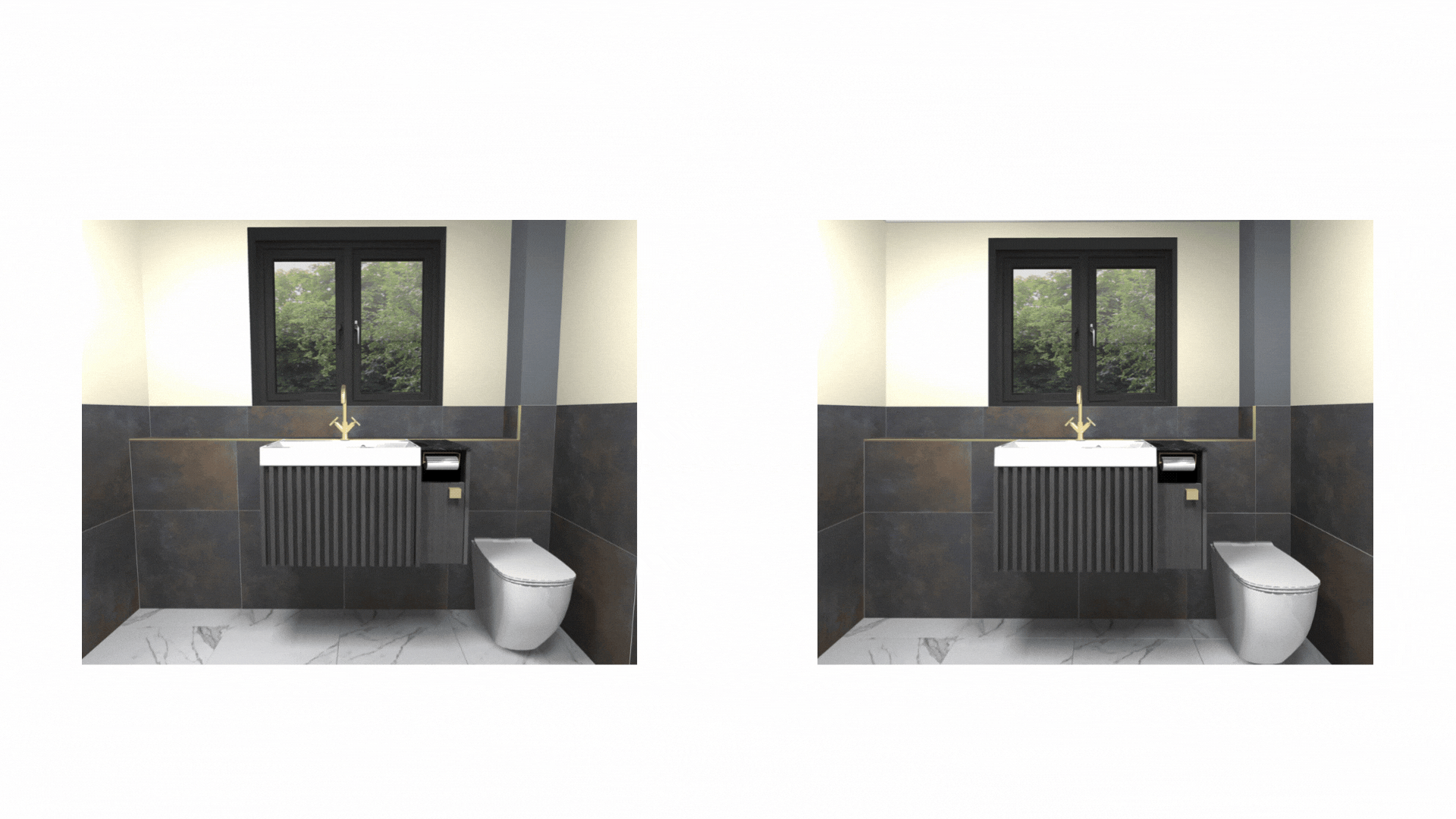

ArchitecturalRenders an image using a one point perspective to straighten architectural lines, creating a precise and professional image. |
Panoramic (Cylindrical) |
Panoramic (Spherical) |
||
|
Renders a panoramic 360 degree image of your design. This image can then be used in the 360 viewer in Design Cloud by anyone who has the file. Note: For detailed guidance on creating panoramic images, see Create a Panoramic image. |
|||
Orthographic
Renders an image with depth perception removed, providing a more technical image. Note: This option is only usable when the Orthographic view is active. For guidance on using Orthographic view and developing images in this projection type, see Using Orthographic view . |
